Product B

Our Customers are very Pleased with our Standard Line and JC Injectors. They have had Years of Trouble Free Service and Minimal Maintenance on these Injectors.

Custom Injectors Designed and Manufactured to Your Specific Needs. From the Smallest Table Top Display to Full Size Rail Road Service. Let us know your needs and Custom Orders are as always welcome

We have a Huge Selection of Live Steam Boiler Feed Injectors for your Hobby and Commercial needs. These Injectors are Reliable, Thermally Efficient and you cant go wrong with an "A & K Injector" for your Boiler Feed Service. We have the Number 2 which will deliver 11 Ounces of water per minute to the Number 16 which will deliver two Gallons of water per minute. We can Supply your "O" or "G" Gauge Steamer up to 5" Scale and Small Commercial Steam Settings. Feor those of you who wish to Build Injectors we Offer the Fabulous Book "The Model Injector," by Ted Crawford.

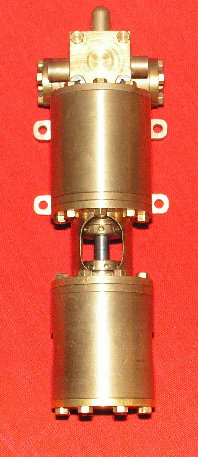

These ready to run Steam pumps are an alternative to axle pumps and injectors
for boiler feed. Easily mounted on the side of your loco, they add operational
interest to any model. Simply control by throttling the steam supply. A suitable displacement lubricator is also available that goes with this pump. Cylinder Dimensions are 0.750" bore on the Steam side and 0.625" bore on the Water side with a Stroke of 0.875." Steam Connections are 3/16" 40 TPI and 1/4" 40 TPI on the Feed connections. Both are Model Engineer Series Threads. Working Pressure is 30 to 160 PSIG Dry Saturated Steam. Overall Height is 5 1/8" and overall Width is 1 3/4" approximately. Ready to run and fully functional.

NEW ITEM!
"The Model Injector," Written for those who not only use but wish to Build Live there own Live Steam Injectors.
Only a Few Copies Left!!!

NEW ITEM!
IN THE WORKS, 2 1/2" SCALE CARSON AND COLORADO 4-6-0 IN
7 1/2" GAUGE. tHE CASTINGS SHOULD BE DONE BY THIS FALL. IN THE FUTURE A 2 1/2" SCALE 4-4-0 AND MOGUL.
